KK650 Wall Mounting Thermal Conductivity Gas Analyser For Hydrogen + Chlorine

Comes complete with

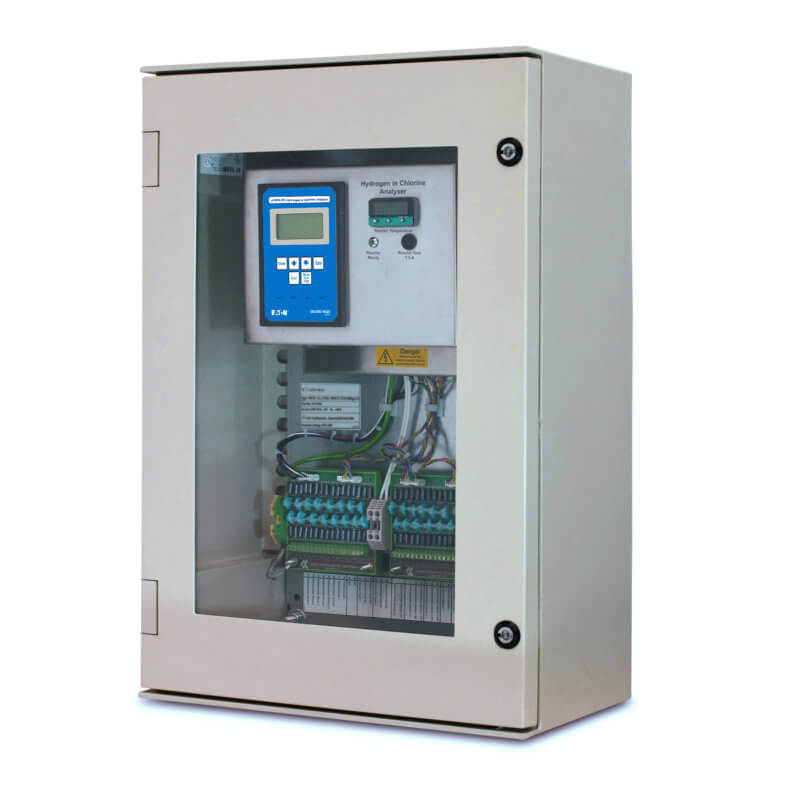

  • Mounting: Wall mounting electronics
  • Sensor: Remote sensor supplied on a wall mounting plate with heated reactor
  • Display Range: 0 to 100% Cl2 0 to 5% or 0 to 10% H2 (Define when placing the order)
  • Output: 4 to 20mA each range
  • Alarms: 4-off (two are user programmable)
  • Sample System: 130-2000 (Bare inlet)
  • Power Supply: 110 or 240 Vac 50/60Hz at 80VA (Define when placing the order)

Downloads

Price will update after choosing each option

$25,494.00

Part Number:
    • $
    • $

    Options

    • 8384 $
    • 16284 $
    • 5787 $
    • 805 $
Part Number:

If you require engineering or programming assistance, or you would like to install this product in an enclosure for regulatory or environmental purposes, please press the "Request More Information" button.

Request More Information

If you are ready to purchase this product with the options you've selected above, please enter the quantity desired and press "Add to Cart"

×

Request More Information

Product: KK650 Wall Mounting Thermal Conductivity Gas Analyser For Hydrogen + Chlorine

Part Number:

Please fill out all required fields, and press "Submit Request" when finished. We will be in touch as soon as possible.
