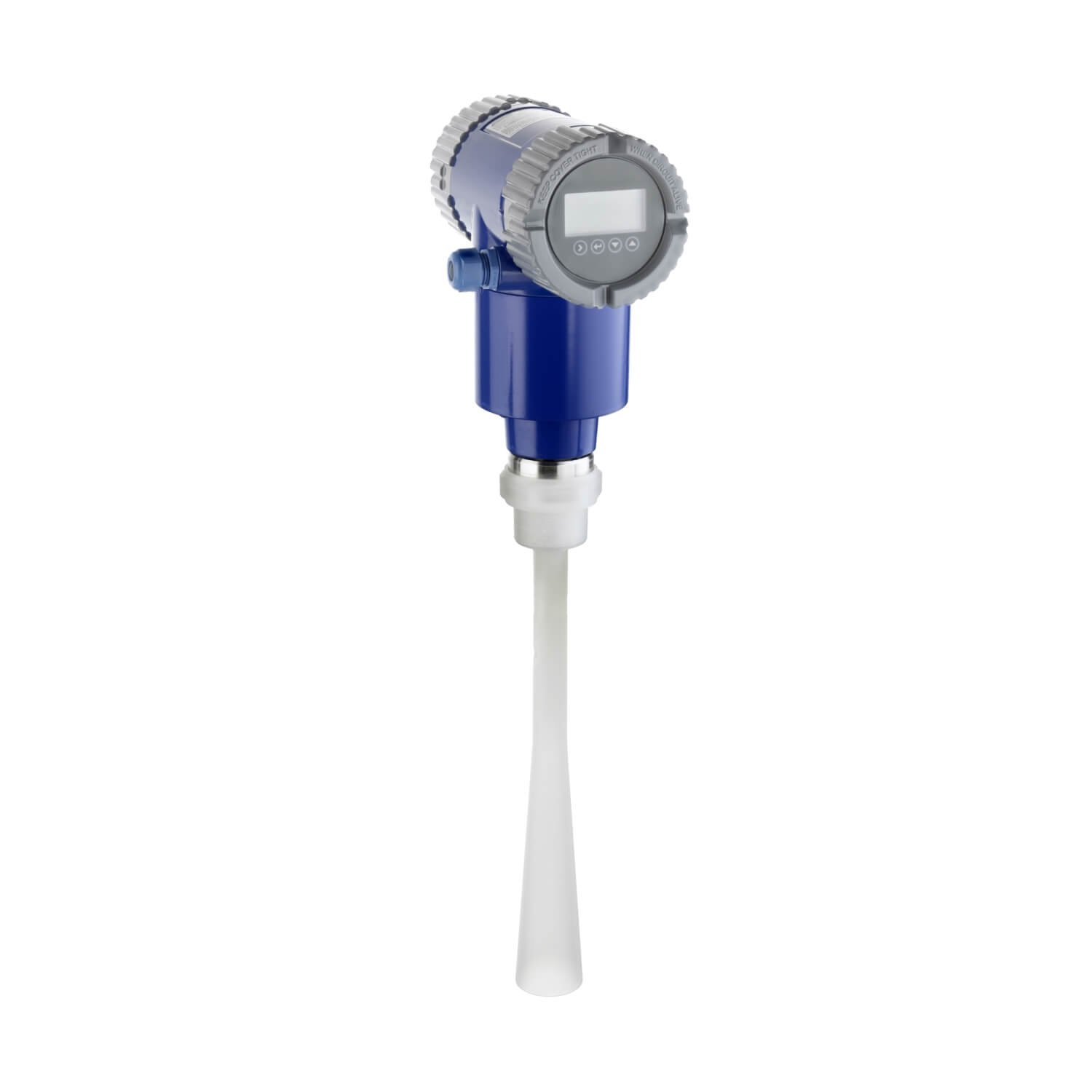

Foxboro LR01 10GHz Radar Level Transmitter

LR01 Level Transmitter

The Foxboro LR01 is a versatile 10 GHz FMCW non‑contact radar level transmitter designed for continuous level measurement of liquids, pastes, and slurries. It’s engineered to deliver reliable, stable readings in diverse process conditions without the need for recalibration.

Ideal for:

• Chemical and Petrochemical
• Oil and gas
• Food and Beverage
• Water/ Wastewater
• Bulk chemical
• Wide range of dielectric medias

Features

• 10 GHz FMCW radar
• Non-contact measuring
• Measuring range of up to 30 meters
• +/-5 mm of accuracy
• Empty tank spectrum
• Echo profile diagnostics
• Self monitoring
• Error diagnostics
• 360° rotatable housing
• Bayonet-sealed enclosure
• Various process connections and antennas available
• LCD display with external pushbuttons
• Multilingual menu
• 2-wire 4-20 mA output
• Supports HART
• FDT/DTM compatible
• –60 °C to +250 °C operating range
• -1 to 40 bar pressure range
• IP66/IP67 rated housing
• Vibration, condensation, steam resistant
• IEC 61508 SIL2 compliant
