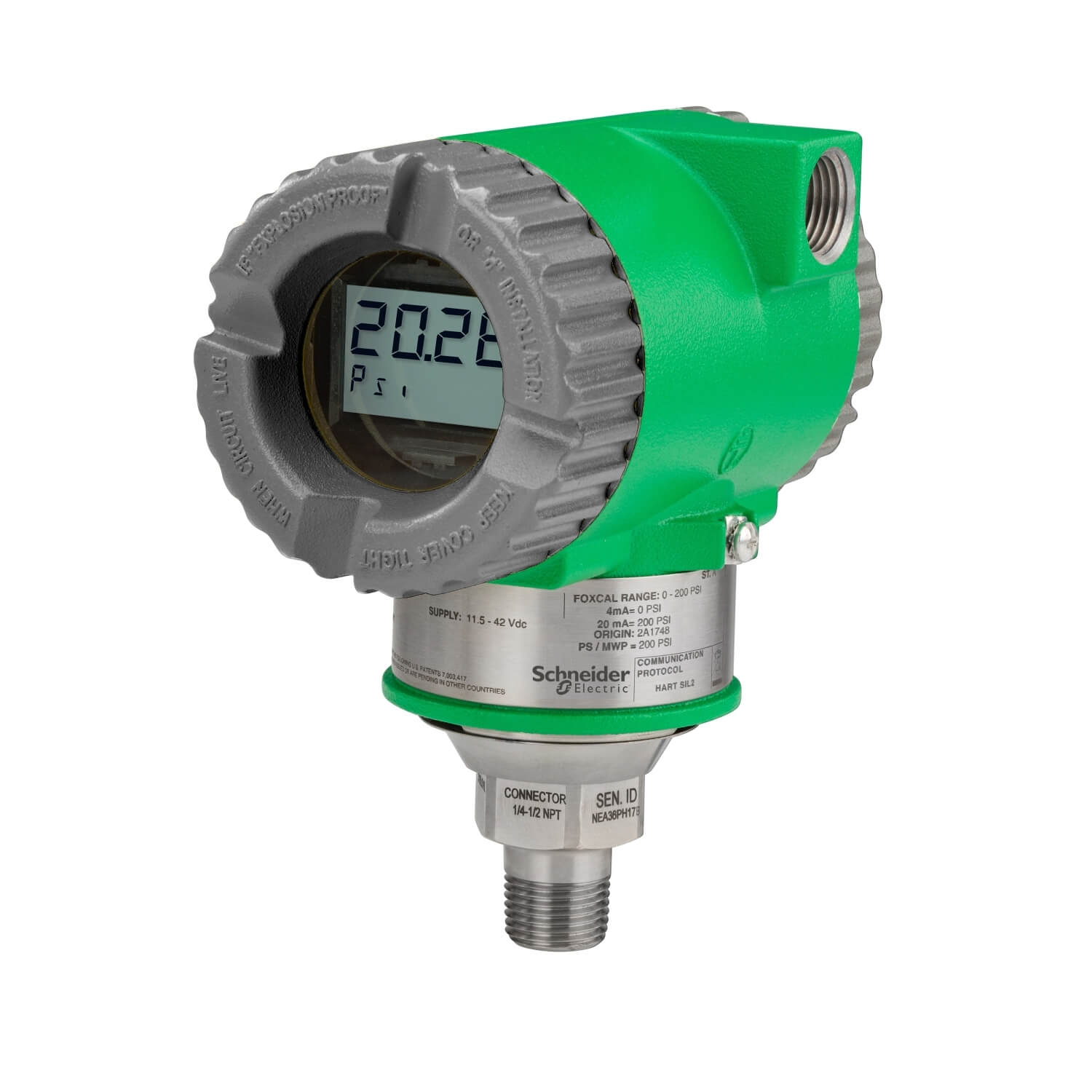

Foxboro IAP50S Absolute Pressure Transmitter

IAP50S Pressure Transmitter

The Foxboro IAP50S is a premium-performance intelligent absolute pressure transmitter engineered for precision, long-term stability, and safety in demanding process industries. As part of Foxboro’s 50S series of smart transmitters, the IAP50S delivers exceptional performance by combining robust mechanical design, advanced digital diagnostics, and cutting-edge calibration technology, making it a reliable tool for critical pressure measurement applications. At the core of the IAP50S is a highly stable and accurate piezoresistive silicon sensor, sealed to measure absolute pressure — the total pressure relative to a perfect vacuum. This makes the IAP50S particularly suited for applications involving vacuum processes, barometric compensation, and systems operating at low absolute pressures. Its sensor is integrated into a rugged housing, built to withstand harsh environmental conditions and aggressive media, while maintaining measurement integrity over long service lives. One of the most notable innovations in the IAP50S is FoxCal™ — a multi-curve calibration technology that stores up to 11 independent calibration curves in the transmitter’s memory. This allows the device to automatically select the optimal calibration curve based on the user’s configured span, eliminating the need for single-range selection during ordering. This feature supports a turndown ratio up to 400:1, significantly increasing installation flexibility and reducing spare inventory costs. For environments with stringent safety requirements, the IAP50S meets SIL 2 certification for use in Safety Instrumented Systems (SIS), as defined by IEC 61508. Its availability with dual-seal compliant construction (per ANSI/ISA 12.27.01) and compatibility with hazardous area certifications (FM, CSA, ATEX, IECEx, and others) make it a trusted solution for oil and gas, chemical, and power applications.

Ideal for:

Vacuum, Low Pressure Monitoring
Custody Transfer
Safety Instrumented Systems
Corrosive Environments
Hazardous Areas
Specialty Gasses
Pressure Control and Monitoring

Features:

Absolute pressure measurement
Accuracy of up to ±0.025% of reading
400:1 turndown ratio
11 factory-calibrated curves
Auto selects best fitting curve
Fast response time
Low drift rate
Supports HART 7
Optional LCD display with pushbuttons
Advanced self diagnostics
SIL 2 certified
Optional dual seal
FM, CSA, IECEx, ATEX certified
EMC/ CE compliant
Piezoresistive silicon sensor
Standard 316L stainless steel construction
Optional wetted materials:
- Monel
- Hastelloy
- Tantalum
- Gold plated
Silicone oil or inert fill fluid
Epoxy coated aluminum or 316 stainless steel housing
- IP66, IP67, NEMA 4X rated
Operating conditions
- –40°C to +85°C
- Up to 6000 psi
Standard threaded connections
Multiple conduit threads/ cable glands
