Foxboro IMP10S Multivariable Pressure Transmitters

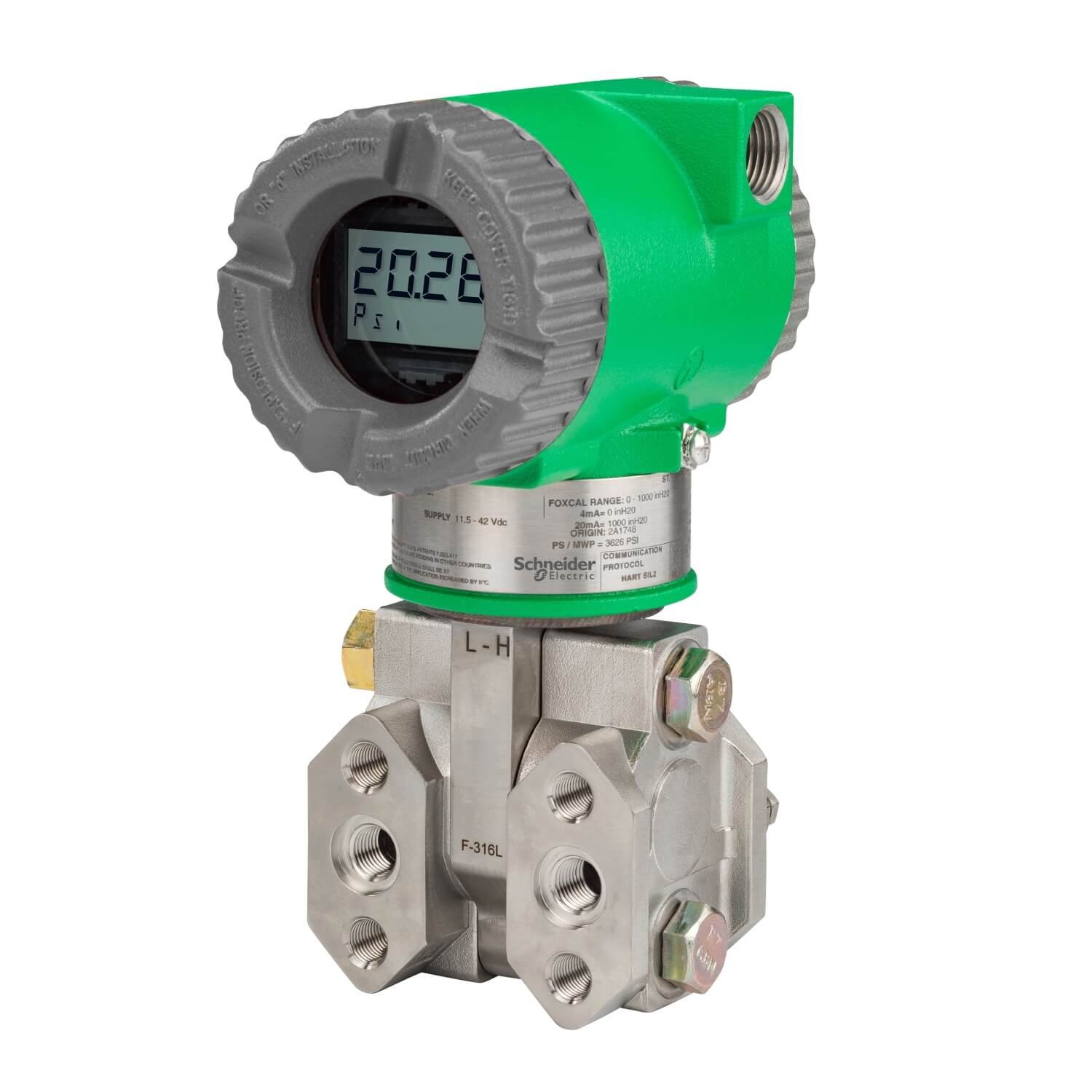

IMP10S Multivariable Transmitter

The IMP10S is an intelligent, multivariable pressure transmitter from Schneider Electric’s Foxboro line. It combines differential pressure, absolute or gauge pressure, and temperature (process or sensor) into a single instrument—eliminating the need for separate transducers. Built for modern mass or volumetric flow measurement systems, the IMP10S calculates flow rate directly when paired with differential-pressure primary devices (typically the FLW10S-enhanced version), using embedded compensation for temperature, pressure, density, and viscosity variations. The IMP10S is a highly efficient, multivariable transmitter that simplifies flow and pressure measurement systems by combining multiple inputs into one rugged unit. With embedded calculation capabilities, excellent stability, local configuration options, and compliance for safety environments, it enables cleaner panel layouts, fewer penetrations, and more accurate compensated flow readings in mass or volumetric systems.

Ideal for:

• Compensated Mass Measurement
• Volumetric Flow Measurement
• Multivariable Processes
• Custody Transfers
• Energy Metering
• Process Skids
• Modular Systems
• Hazardous Areas

Features:

• Four variables:
  • Differential pressure
  • Gauge pressure
  • Process temperature
  • Internal temperature
• FLW10S allows flow compensation
• Accuracy of ±0.025% of calibrated span
• Stability of ±0.05% of URL/year for 5 years
• Excellent repeatability
• Factory calibrated for 11 pressure ranges
• Auto calibrates to most optimal curve
• 4-20 mA output signal
• Communications:
  • HART
  • Modbus RTU
• Optional LCD display with pushbuttons
• Tracks time-in-service
• Diagnostics for sensor drift, range limits, failure detection
• Integrable with process management system
• Epoxy-coated aluminum or 316 stainless steel housing
• Diaphragms:
  • 316L stainless steel
  • Hastelloy C
  • Tantalum
• Fill fluids
  • Silicone oil
  • Inert fill
• IP66/IP67 rated
• ANSI, DIN, JIS flanges or threaded options
• Supports a wide range of operating temperatures
• FM, CSA, ATEX, IECEx certification options
