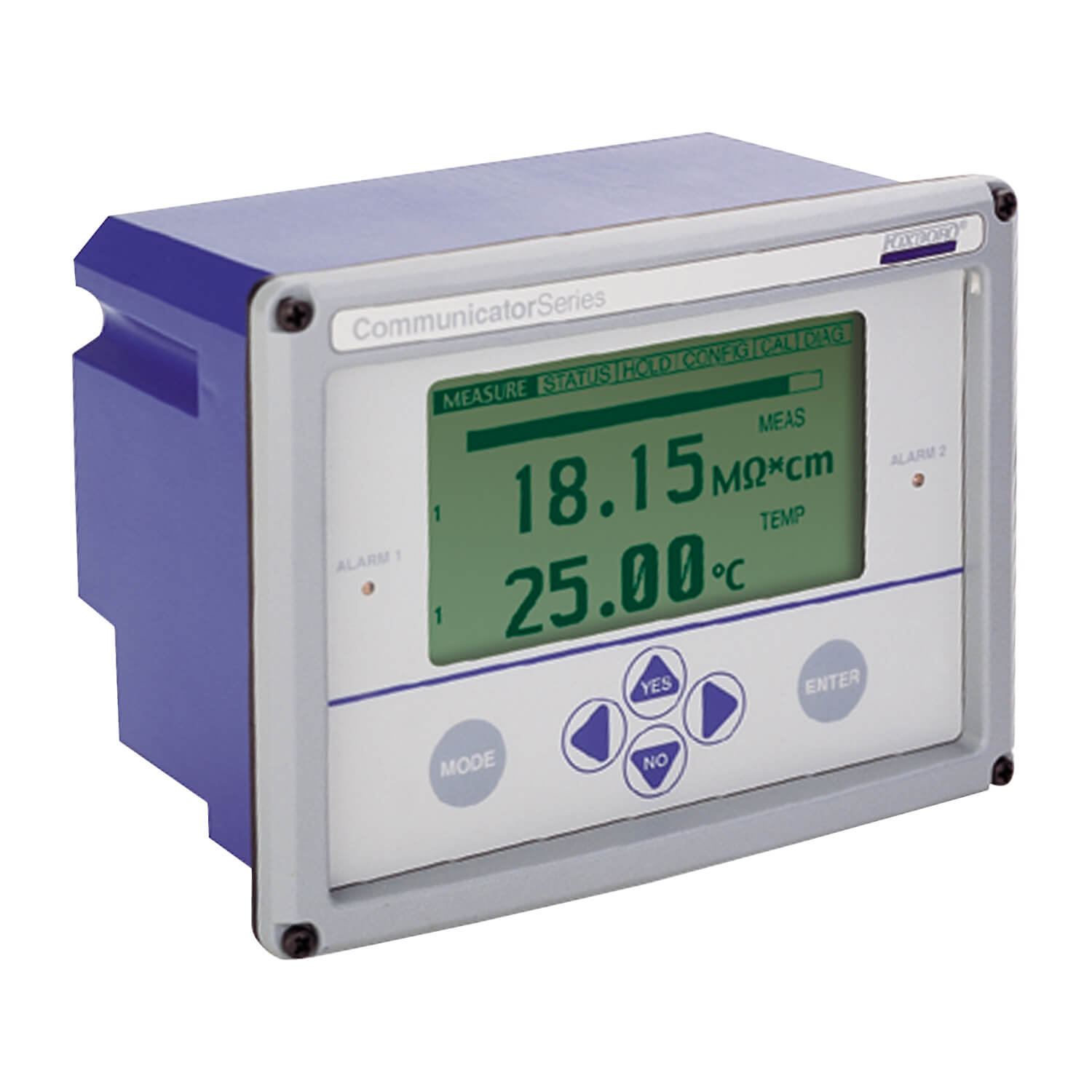

Foxboro 875EC Conductivity / Concentration Transmitter

875EC Line-Powered Analyzer

The Foxboro 875EC is a line‑powered, microprocessor‑based electrochemical analyzer specifically designed for electrodeless (inductive/toroidal) conductivity and concentration measurement. Engineered for use with sensors like the Foxboro 871EC or 871FT, it delivers reliable, accurate measurement across challenging process fluids—ranging from ultrapure water to concentrated acids, bases, or slurries.

Ideal for:

Chemical and Petrochemical
Water/ Wastewater
Pulp and Paper
Mining
Slurry Systems
Food and Beverage
Clean-in-Place Operations
Multi-Product Systems
Hazardous Environments

Features:

Electrodeless measurements
Compensates for temperature
Dual 4-20 mA outputs
2 programable relays
Optional HART communication protocol
Backlit, high-contrast LCD display
4 push buttons
RS-232 serial port
Stores 3 application profiles
Remote profile switching
Stores up to 100 timestamped events
NEMA 4X / IP65 rating
Dust and water resistant panel
Certifications:
- FM, CSA, ATEX, IECEx
- Class I, II, III, Div 2
- Zone 2 environments
Compatible with Foxboro electrodeless sensors
